Data Loggers & Video

AiM Sports SmartyCam GP Base Mount Kit The Best Mount for Your SmartyCam Bullet Camera This strong, adjustable mount holds your AiM Sports SmartyCam GP HD base unit securely to your roll bar or harness bar. Two pivoting ball joints give you lots of adjustment while keeping it safe and secure during races and track days while the V-shaped base and two different size hose clamps fit a wide range of tubing sizes, from 1" to 2" OD. The rectangular base adapter provides a stable, bolt-on base for secure mounting of the SmartyCam GP base. The wide range of adjustment lets you aim the viewing screen in just about any direction. Includes V-base with ball, double clamp arm, top ball with 2-bolt diamond mounting flange, rectangular mount base adapter, 2 hose clamps, and rubber isolator strap.

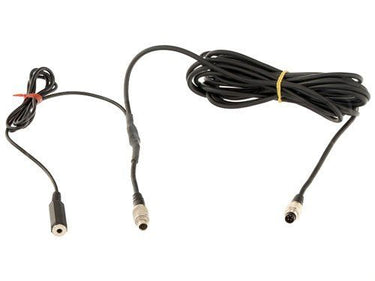

AiM Patch Cables With 3.5mm Microphone Input The original AiM SmartyCam (2009-2013) and new SmartyCam HD V 2 / SmartyCam HD GP all have an internal microphone for great racing sound, but it does limit your sound options. This special cable has a 3.5mm mono jack for an external microphone. The input from this jack automatically mixes with the sound from the SmartyCam internal microphone. SmartyCam Microphone Cable Fitment Original SmartyCam (2009-13, with the viewing screen on top) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD "Rev 2" or later (2015+) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD GP "Rev 2.1" or earlier (to 2018) Exp port to AiM dash/logger or SMC Bridge AiM SmartyCam CAN Cable with Microphone Jack, 4M Details: Manufacturer: AiM Manufacturer part number: V02566300 Alternate part number: MC-552 Dash, Solo DL, Solo 2 DL End: 5 Pin Male 712 SmartyCam End: 7 Pin Male 712 Microphone jack: 3.5mm female mono Cable length: 4M (13 feet) Length from 7 pin 712 to "Y" Adapter: 50mm Length from Y adapter to 5 pin 712" 4 Meter Length from Y adapter to microphone 3.5mm female jack: 900mm The 7-pin 712-type connector plugs into the CAN port on the original AiM SmartyCam. A 5-pin connector on the other end connects your SmartyCam to your AiM data logger, SMC Bridge, etc. Measures 4M (13 feet) long. 3.5mm mono microphone jack is attached to the lead. This cable is not compatible with the SmartyCam HD, which has a 5-pin plug.

Stilo to Garmin Adapter Cable This cable can be used to connect your Garmin Catalyst Driver Performance Optimizer to your Stilo helmet. Includes 3.5mm connector on one end and Stilo male IMSA connector on the other. Made in the USA from thin ROHS-compliant cable.

AiM Sports Solo 2 Direct Power Cable Not getting enough current through your OBDII connection? Add this direct power cable and never worry about charging before an event again.

AiM Solo 2 & Solo 2 DL Vehicle Power Wiring Harness Now you can power your AiM Solo 2 and Solo 2 DL for your entire endurance race without the need to charge the battery. The power cable that comes with the AiM Solo 2 in the package is set up for a cigarette lighter connection, but this is a hard wire connection for true race cars. This harness connects your AiM Solo 2 to your vehicle's fuse box wiring. One end has a 5-pin 712 (screw-in) connector to fit the Solo, and the other has 2 non-terminated wires (Power and Ground). AiM Solo 2 & Solo 2 DL Vehicle Power Wiring Harness Details: Manufacturer: Aim Manufacturer part number: V02589020 Fits Solo DL: No Fits Solo 2 DL: Yes Fits Solo Base Model: No Fits Solo 2 Base Model: Yes Pins on AiM Solo Side: 5 Pin Thread on connector Vehicle Chassis Ends: 2 Non terminated wires Vehicle Chassis Ends Break Out: Power, and Ground If you are putting a Solo2 into an older vehicle and need a direct to battery/fuse box power supply cable, use this harness for an easy install.

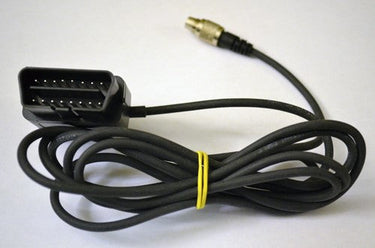

AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo 2 DL AiM Solo 2 DL to OBD-II Port Connection Cable On Your Car For Easy Addition of RPM and other vehicle data. One end has the K-Line (OBD-2) plug to fit the diagnostic port, and the other end has a 7-pin 712 (screw-in) connector for the Solo 2 DL. OBD-II is also known as K-Line This is the same cable supplied with the original AiM Solo 2 DL for OBD-II. Does not fit the original Solo DL. AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo 2 DL Details: Manufacturer: AiM Manufacturer part number: V02589040 End 1: AiM 7 Pin 712 (thread on) End 2: OBD-2 (K-Line) Fits AiM Solo: No Fits AiM Solo DL: No Fits AiM Solo 2: No Fits AiM Solo 2 DL: Yes

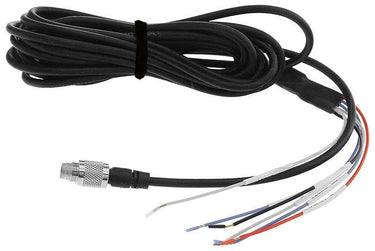

AiM Solo 2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Moving your Solo2 DL from one car to another and need another harness for only power or both power and data input, this is your cable. If you are putting a Solo DL into an older vehicle and need a power supply cable, use this and use only the + and - wires and fold back the can inputs. The AiM V02569050 harness connects your Solo 2 DL to your ECU via CAN or RS232 wiring. One end has a 7-pin 712 (screw-in) connector to fit the Solo 2 DL, and the other has 6 non-terminated wires (CAN+, CAN-, RS232RX, RS232TX, Power, and Ground). Does not fit original AiM Solo DL. AiM Solo2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Details: Manufacturer: AiM Manufacturer part number: V02589050 Fits Solo DL: No Fits Solo 2 DL: Yes Fits Solo Base Model: No Fits Solo 2 Base Model: No Pins on AiM Solo DL Side: 7 Pin Thread on connector Vehicle Chassis Ends: 6 Non terminated wires Vehicle Chassis Ends Break Out: Red=12VDC, Black=Ground, Blue=ECU RS232TX, Blue=ECU RS232 CAN-, Gray ECU RS232 RX, Gray CAN+ AiM Solo 2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Wiring Codes: Red: 9-15VDC Black: Ground Grey: CAN+ Blue: CAN- Black: ECU RS232 RX Blue: ECU RS232TX Both blue wires are the same color, but each wire has an identifier tag stating the connection type

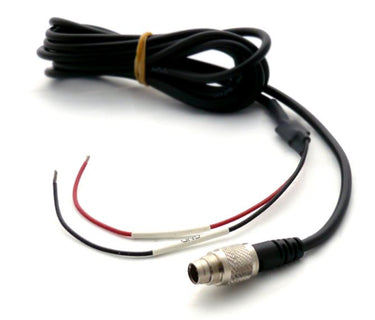

AiM Sports SmartyCam External Power Cable NOTE: Cables typically take 3 to 5 business days to ship. If you're not powering your AiM SmartyCam by connecting it to a Solo2 DL or an AiM Sports Dash, you'll need this external power cable in order to provide enough juice for your SmartyCam to record every session. Installation is quick and easy. Two meters (6.5 feet) in length.

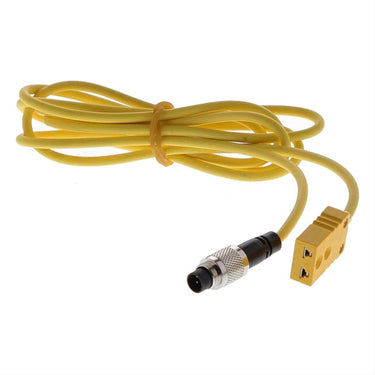

Thermocouple extension cable with 712 3-pin male end to K-style female end. 5.00 ft. cable length.

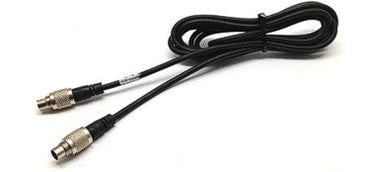

AiM Sports SmartyCam to Solo/Dash Cable NOTE: Cables typically take 3 to 5 business days to ship. Have more than one vehicle with a dash or Solo 2 DL? Want to make swapping your SmartyCam between vehicles easier? Grab this extra 4M cable for your second car, route the cable as needed and leave it in place to power your SmartyCam when you drive that car. This cable takes the headache out of the process for people with more than one vehicle but only one SmartyCam. Four meters (13 feet) in length.

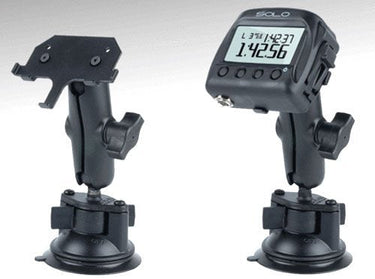

RAM Windshield Suction Mount Among the great advantages to the AiM Solo family of GPS lap timers is that, unlike other timers, you don't have to connect any wires to use it. That makes it ideal for use in daily-driven track-day cars (or for moving from one car to another). The RAM windshield mount lets you to mount your AiM Solo2 or Solo2 DL (and older Solo versions) to your windshield quickly and securely. Installation is as easy as pushing a lever; removal is as easy as lifting the lever. Two pivoting ball joints allow a wide range of adjustment. Two 6mm screw holes match the holes in the standard mounting plate included with your AiM Solo2 or Solo2 DL. There's no better, more convenient way to mount your AiM Solo2 / Solo2 DL.

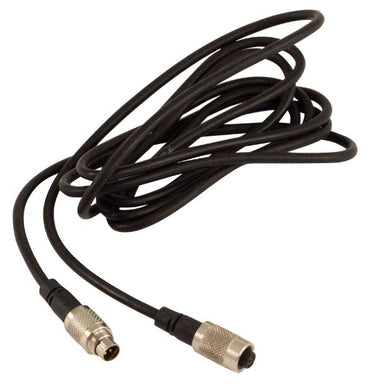

AiM Sports 5-pin 712 To 712 CAN Patch Cable These cables each have a female 5-pin 712 (screw-in) connector on one end and a male 5-pin 712 connector on the other. The 5-pin 712 connector is used on all AiM dash and data logger CAN inputs. These cables will extend the reach of CAN hubs and other accessories. Part numbers: V02552700 – cable length: 1 Meter V02552720 – cable length: 2 Meters V02552730 – cable length: 3 Meters V02552740 – cable length: 4 Meters

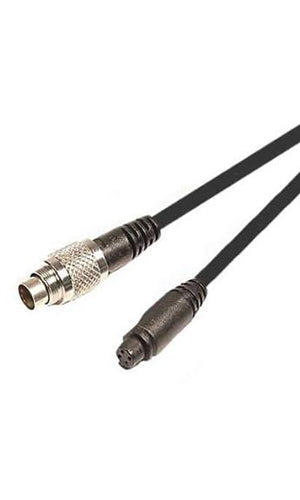

AiM Sports 712 to 719 Four-Pin Patch Cables NOTE: Cables typically take 3 to 5 business days to ship. Add the appropriate AiM Sports 712 to 719 4-Pin Extension Cables to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! The AiM Sports 712 to 719 4-Pin Patch Cables have a female 4-pin 719 (plastic) connector at one end and a male 4-pin 712 (threaded) connector at the other to connect most analog automotive sensors to the MyChron3, XG-Log Auto Dash, AiM EVO4, or AiM EVO4s Data Logger. Available in 0.5 thru 4 Meter lengths. CONNECTS TO: MyChron3 Data Hub XG-Log Auto Dash EVO4 Logger EVO4s Logger PART NUMBERS: V02PCB05BTXG – cable length: 0.5m (1.6 ft) V02PCB10BTXG – cable length: 1 meter (3.3 ft) V02PCB15BTXG – cable length: 1.5 meter (4.9 ft) V02PCB20BTXG – cable length: 2 meters (6.6 ft) V02PCB25BTXG – cable length: 2.5 meters (8.2 ft) V02PCB30BTXG – cable length: 3 meters (9.8 ft) V02PCB35BTXG – cable length: 3.5 meters (11.5 ft) V02PCB40BTXG – cable length: 4 meters (13.1 ft)

Garmin Direct Power Cable For use with the Garmin Catalyst Driver Performance Optimizer. It is not recommended to hardwire Garmin automotive products to a 12-volt power source unless using a specifically-designed, Garmin-made accessory with a compatible device. Hardwiring a device in any other way may cause damage. Damage incurred in this way is not covered under warranty.

Garmin Catalyst Download & AC Adapter Kit Download, power and recharge your Garmin Catalyst from any standard US wall outlet. The Garmin Catalyst adapter kit includes 1 micro cable and 1 mini cable so you can plug the appropriate cable into your device and then attach the AC outlet adapter for power or connect to a personal computer for data transfer. Garmin Catalyst Download & AC Adapter Kit Details: Manufacturer: Garmin Manufacturer Part Number: 010-11478-02

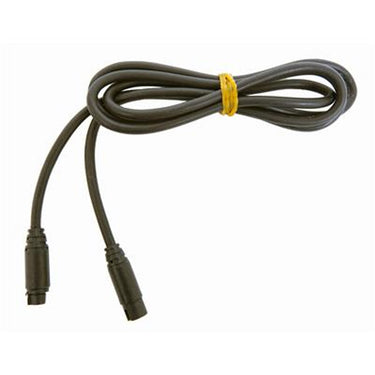

AiM Sports 719 Extension Cables NOTE: Cables typically take 3 to 5 business days to ship Add the appropriate AiM Sports 719 Extension Cables to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! Use these extension cable to connect additional sensors to the following AiM Sports Dashes: MXG MXS MXL2 MXL Strada/Pista/Pro 05 Part numbers: V02PCB05B – cable length: 0.5m - 1.6ft V02PCB10B – cable length: 1m - 3.3ft V02PCB15B – cable length: 1.5m - 4.9ft V02PCB20B – cable length: 2m - 6.6ft V02PCB25B – cable length: 2.5m - 8.2ft V02PCB30B – cable length: 3m - 9.8ft
